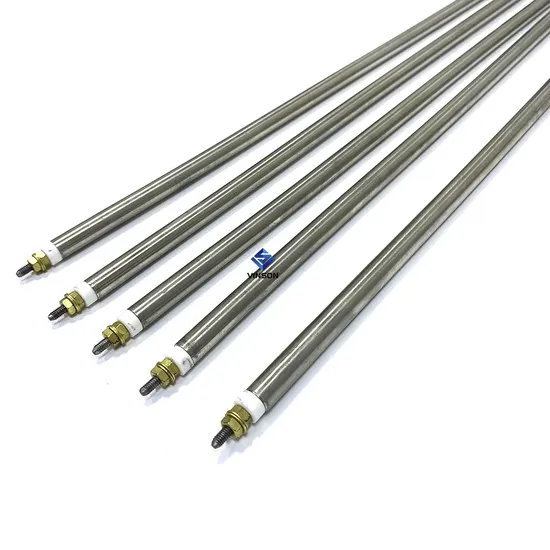

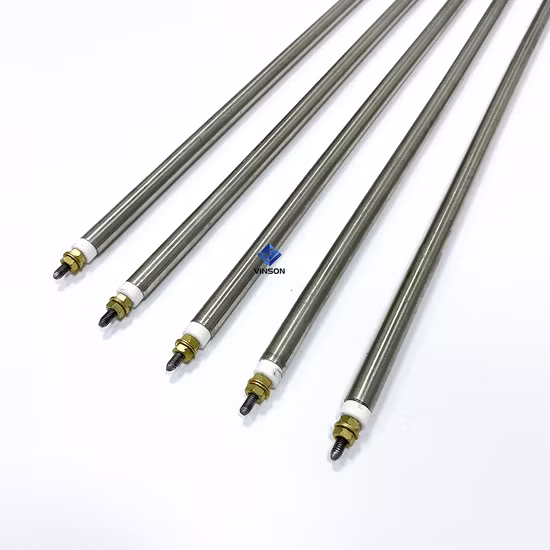

Electric Industry Straight Air Tubular Heating Element for Oven

Basic Info.

Power Tolerance	-5%-0%
Screw Threads	1", 1-1/4", 1-1/2", 2", 2-1/2",3′′
Voltage	12-480V(Customized)
Diameter	6mm, 6.5mm, 8mm, 10mm, 12mm(Customized)
Transport Package	Carton or Wooden Box
Specification	customized
Trademark	VINSON
Origin	China
HS Code	85168000
Production Capacity	1000PCS/Week

Product Description

Highly versatile and economical Vinson tubular heating element are applied in virtually every conceivable type of heating application. These robust heaters are a reliable thermal source used to heat a multitude of liquids, gases, and solids and can be applied straight or bent into complex formations. Tubular heaters are also used for radiant heating in open air or in vacuum at mospheres. The elements can be cast into or clamped onto metal to form heated parts. A wide selection of standard designs are available or they can be custom designed for your requirements.Vinson Industries' application and design engineering team are available to assist in specifying the proper heater configuration.

Description

Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.

Features:1.Nickel Chrome resistance wire2.Immersion Heaters are available with screw plug flanges3.Air Heaters are available with MS or SS fins4.Tubular heating elements with additional PTFE sleeving is available for heating corrosive chemicals. Applications for Electric Tubular Heater1.Plastic Processing machinery.2.Water and Oil Heating Appliances.3.Packaging machineries4.Vending Machines.5.Dies and Tools.6.Heating Chemical Solutions.7.Ovens & Dryers8.Kitchen equipments9.Medical equipmentsUsed in many other applications.
Order Guidance:

When you order the tubular heater, please note the specifications as follows:

1.Drawings preferred2.Power,voltage,shape3.Working temperature4.Material requirement5.QuantityPlease kindly note that we could do any customized type for you.Related Products:
